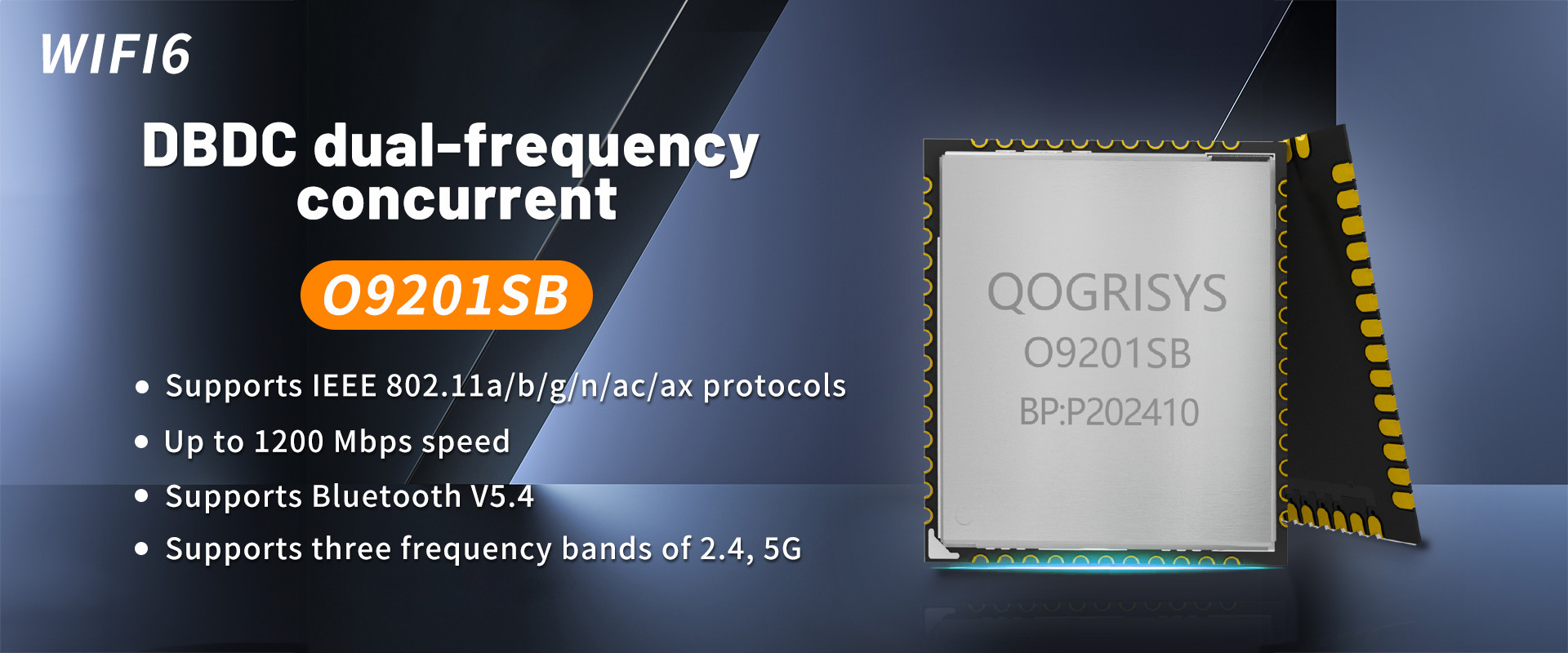

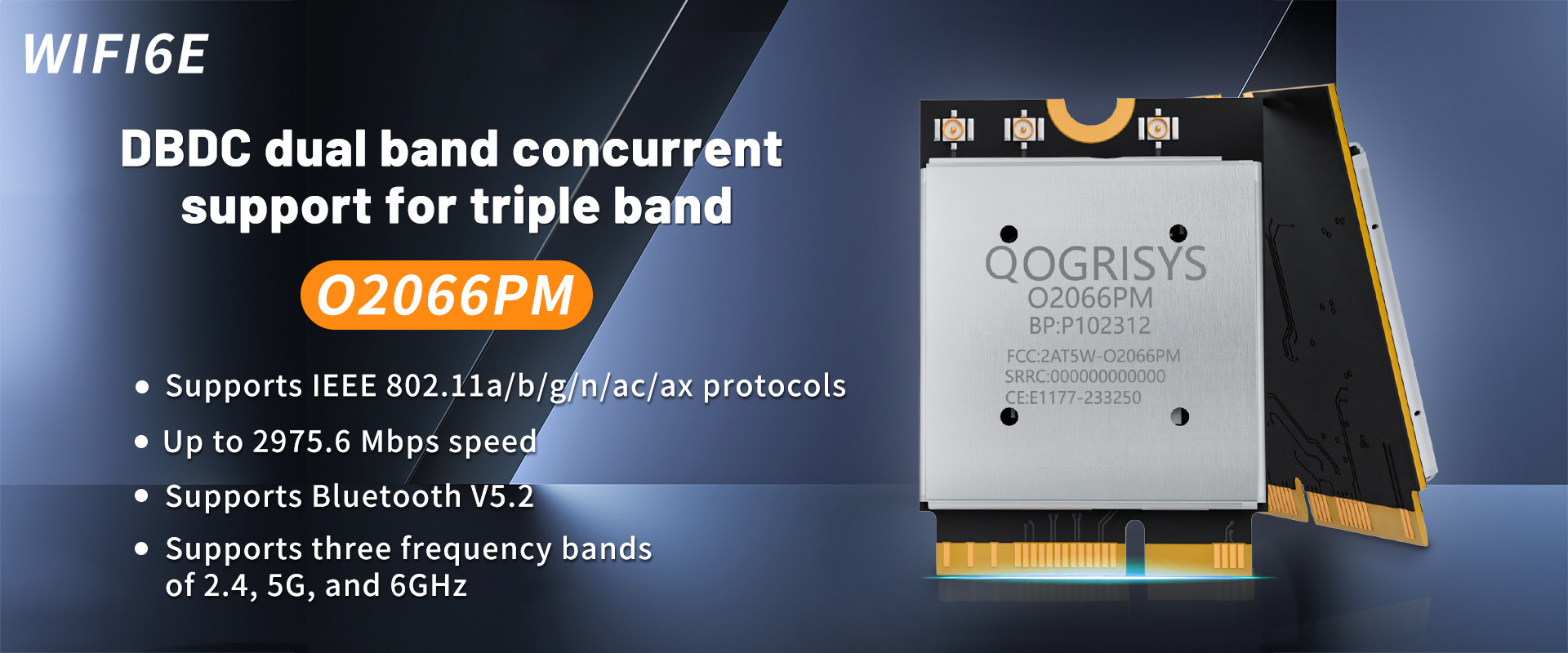

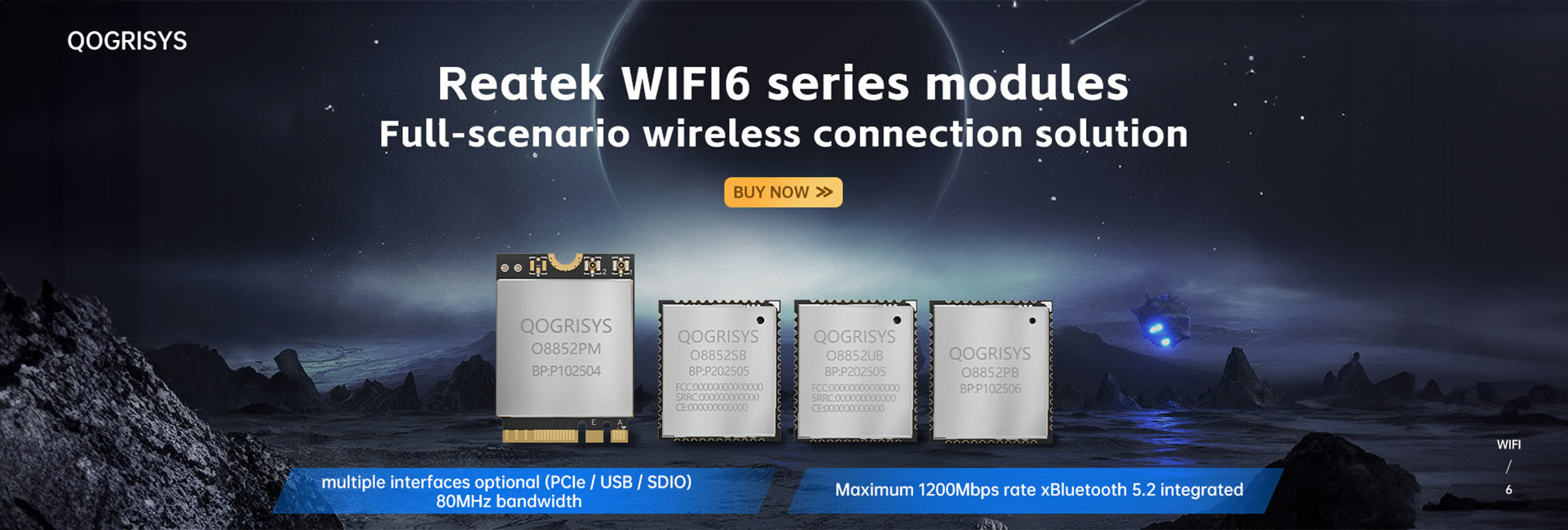

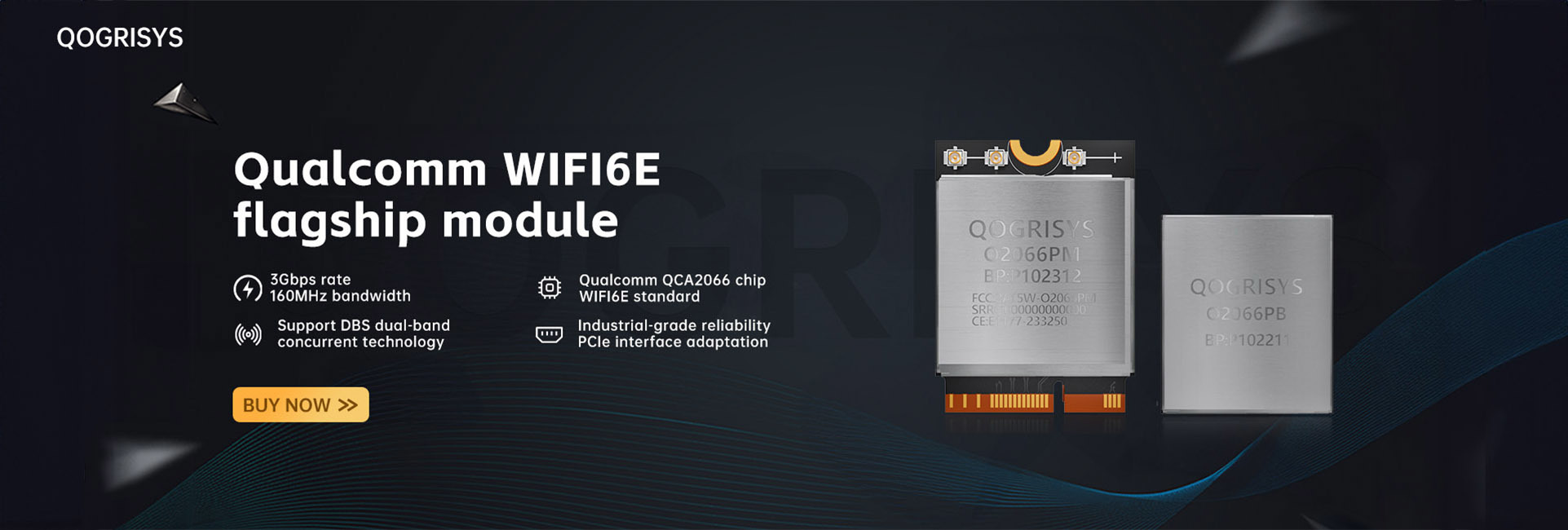

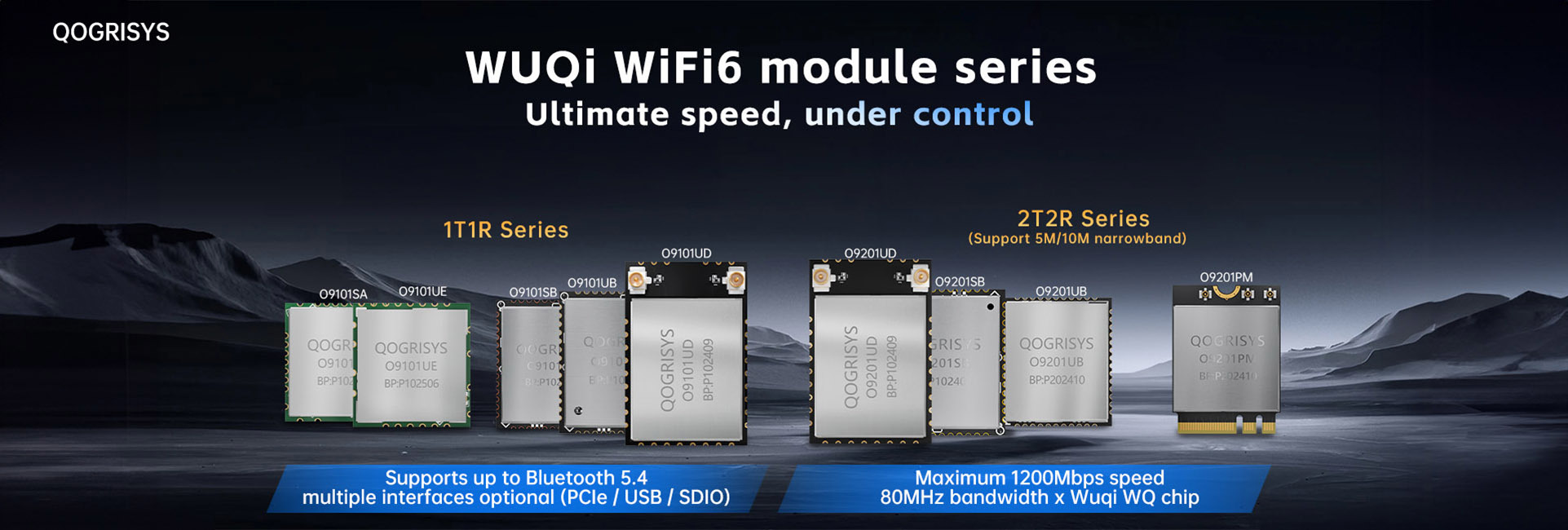

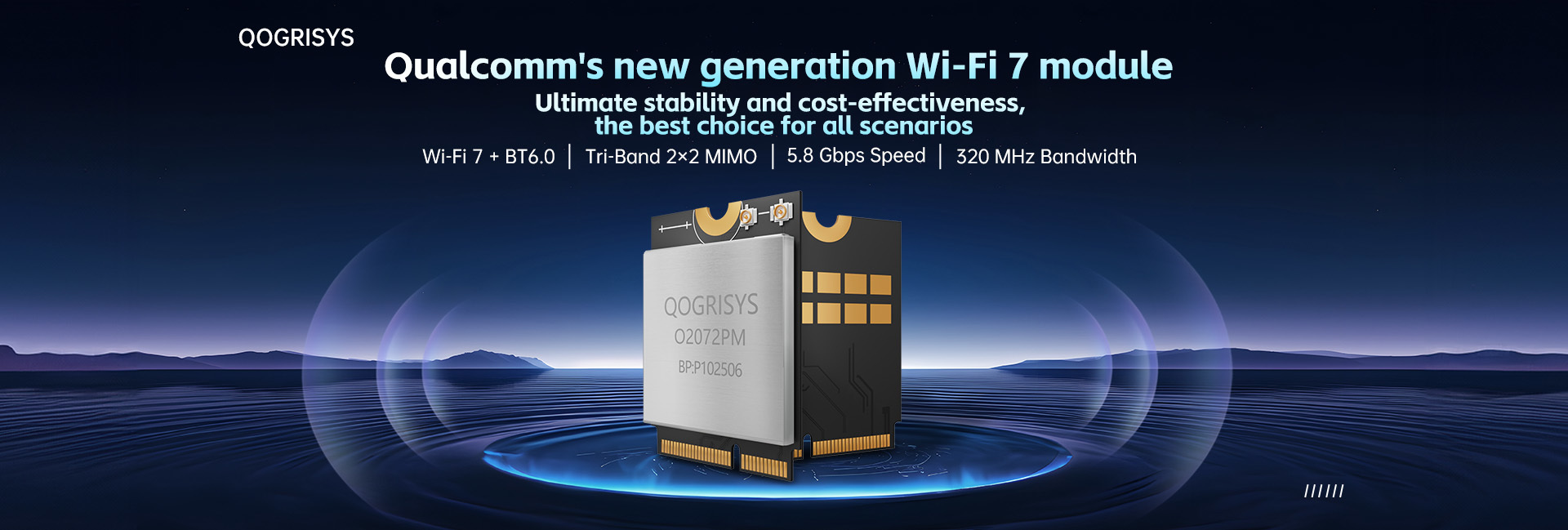

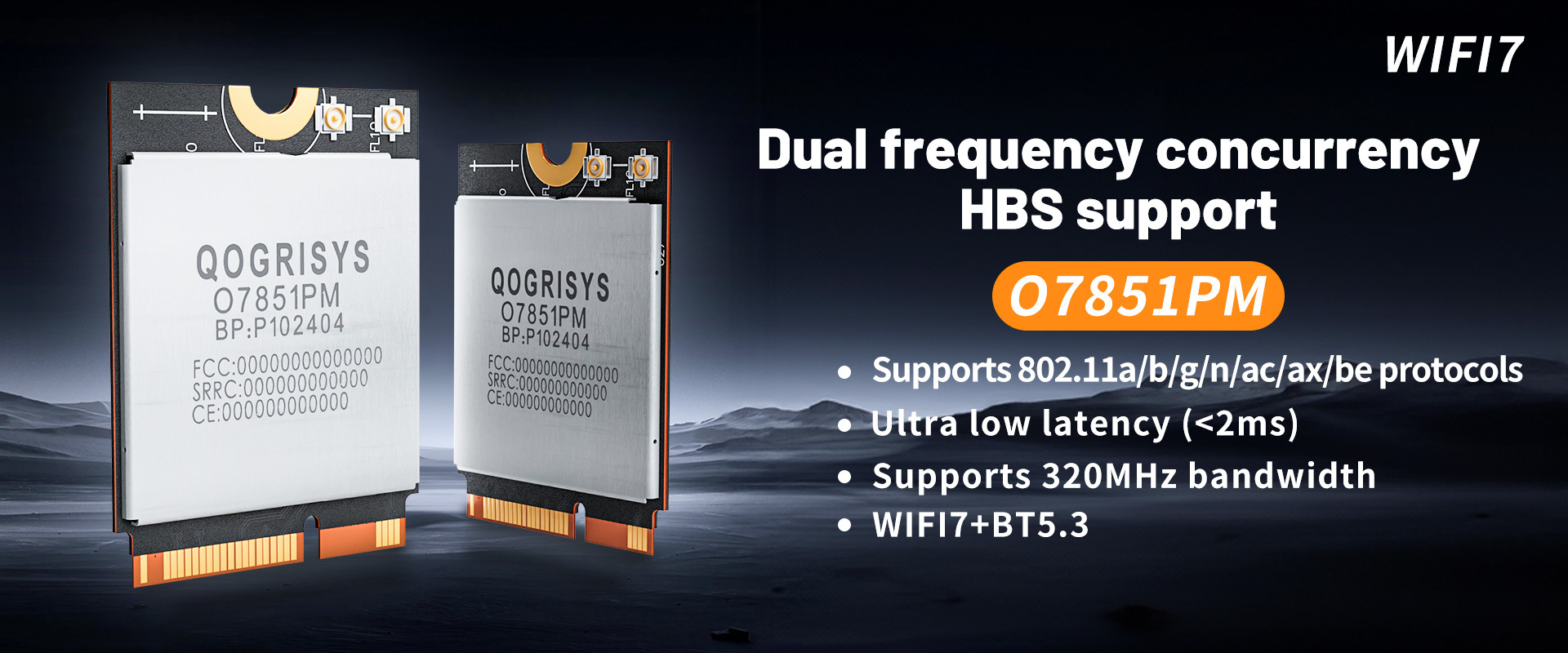

Qualidade Módulo WiFi7 & Módulo WiFi HaLow Fabricante

The global smart street light market is undergoing a structural expansion. A report released by Research and Markets in January 2026 shows that the market is projected to grow from $35.6 billion in 2026 to $74.9 billion in 2030, representing a CAGR of 20.4%. Europe is accelerating the renovation of existing infrastructure driven by mandatory replacement policies, while emerging markets in the Asia-Pacific region are releasing incremental demand through urbanization. However, a overlooked fact is that market expansion does not equate to simpler communication solution selection. On the contrary, as the focus of renovation shifts from "new construction" to "existing infrastructure," the primary constraint on communication solutions changes from technical specifications to the question: "Can this road be dug?" The position of PLC (Power Line Carrier Communication) under this constraint is clear: the streetlights themselves are connected to the power line, the PLC uses the same cable as both a power supply and data channel, and the communication signal is transmitted along the existing line without the need for any additional communication cables. Europe: Policy mandates have created the most certain scenarios for upgrading existing PLC systems. Europe is the region with the strongest policy drive for smart street light upgrades globally. A 2026 report by Mordor Intelligence points out that the EU's Mercury Regulation 2024/1849 requires the complete phase-out of compact fluorescent lamps by December 2025 and linear fluorescent lamps by December 2026. These compliance deadlines directly triggered a surge in municipal tenders. Simultaneously, the EU requires the public sector to reduce energy consumption by 11.7% by 2030, transforming the transition to network-connected LED lighting from an "optional" to a "compliance necessity." The unique aspect of this policy window is that it targets "replacement of existing infrastructure" rather than "new construction." Many streetlights in Europe were installed decades ago, with intact power cables but missing communication cables. Adopting a solution requiring separate communication cabling would mean excavating or re-laying conduits along the entire route, resulting in unpredictable costs and time. The ability of PLCs to reuse existing power cables perfectly matches the policy's mandated time pressure with the construction constraints of upgrading existing infrastructure. German practice provides a reference: the LED upgrade of 48,000 streetlights in Munich, combined with adaptive dimming, reduced energy consumption by 93% during off-peak hours. For these types of projects, communication reliability is more important than bandwidth; the millisecond-level latency of PLCs and the engineering advantages of no-wiring are more significant than wireless solutions in this scenario. However, the European market also presents a strict cost scrutiny. Smart retrofitting costs between €300 and €500 per pole, while basic LED replacement only costs €150 to €200. This price difference means that the selection of PLC modules must withstand scrutiny regarding the question of "why not use wireless?" The answer lies not in technological superiority, but in the engineering certainty under existing wiring conditions : wireless solutions are affected by terrain and building obstructions in dense urban areas, requiring additional relay nodes in practical testing, while PLCs, assuming the power supply cable is intact, have a physically existing communication link.   China and Asia Pacific: Differences in PLC Positioning in Incremental Markets Data from China's smart light pole market presents a different picture. QYResearch statistics show that the global smart city light pole market sales reached approximately $412 million in 2025 and are projected to reach $796 million by 2032, representing a compound annual growth rate of 10.0%. Unlike Europe's "replacement of existing stock," China's growth is largely driven by new "multi-purpose" projects: light poles simultaneously serve functions such as lighting, monitoring, 5G micro base stations, and environmental monitoring. Communication solutions tend to favor fiber optic or wireless backhaul because the civil engineering of the light pole itself is already included, thus amortizing the marginal cost of laying separate communication cables. This means that the main opportunity for PLCs in the Chinese street lighting market lies not in "building new smart light poles," but in the niche scenario of "energy-saving retrofitting of existing road lighting." Many urban roads in China only have power cables in their lighting circuits, lacking communication lines. If only single-lamp control, dimming, and fault feedback are required, PLCs offer better engineering economics than rewiring. A study published in the 8th issue of *China Lighting Appliances* in 2026 points to this logic: traditional control modes are energy-intensive and difficult to maintain, while mainstream wireless communication solutions are easily affected by terrain obstruction in densely populated urban areas. PLCs, utilizing existing cables for data transmission, offer advantages such as low cost and reliable connection. The Southeast Asian market is in an earlier stage. In March 2026, Terengganu, Malaysia, installed the state's first 5G smart lamppost at the Kedebayan Market, integrating smart lighting, monitoring, environmental monitoring, and electric vehicle charging functions. These markets share common characteristics: real incremental demand, but projects are small-scale, budgets are fragmented, and there is a higher sensitivity to module costs than to brand premiums. In these markets, PLC modules are more likely to follow lighting solution providers overseas rather than independently building brand recognition.   The strategic position of the Qogrisys S130N-ISI in this landscape The product parameters of the S130N-ISI need to be understood within the context of the aforementioned market differences. It is based on the Leadcore VC6330, with an LCC package size of 20.6×12.6mm, supports both Q/GDW 11612 and IEEE 1901.1 protocols, and provides UART, PWM, GPIO, ADC, and SPI interfaces, integrating a built-in wire driver. According to official data from Leadcore regarding the VC6330 chip, application-layer communication rates can reach 1Mbps, with attenuation resistance exceeding 112dB, and a 99.99% communication success rate in actual projects. These parameters address the question of "whether it can be used," but the "usability" in different markets depends on the line conditions and system integration quality. The aging of the lines in European projects, the distribution of interference sources in Chinese projects, and the differences in construction specifications in Southeast Asian projects all affect the actual performance of the PLC. In street lighting scenarios, the value of the S130N-ISI lies not in promising "it will work immediately after installation," but in providing a hardware option that meets basic engineering requirements in three dimensions: protocol matching (Q/GDW 11612, IEEE 1901.1), size adaptation (20.6×12.6mm can be embedded in a single lamp controller), and interface integration (PWM dimming, ADC acquisition). One fact that requires careful consideration is that publicly available authoritative data on the actual global adoption rate of PLCs in smart streetlights is limited. What can be confirmed is that PLCs are one of the official options for smart streetlight connectivity, with academic research and engineering practice supporting their feasibility under specific conditions. However, conclusions such as "PLCs will dominate streetlight communication" lack data support. For engineering teams evaluating solutions, a more pragmatic approach is to test the wiring first, then select the modules. Only when the line impedance and signal-to-noise ratio are within reasonable ranges can the wiring-free advantage of PLCs translate into savings in construction time and costs; if test results are unsatisfactory, the costs of forcing PLC implementation may only become apparent during the commissioning phase.   Conclusion: The window of opportunity belongs to solution providers who clearly explain the "constraints". The global smart street light market's 20.4% CAGR provides a real window, but this window opens differently in different regions. In Europe, mandatory policies have created a definite demand for retrofitting existing infrastructure, where the wiring-free advantage of PLCs has the clearest engineering logic. In China, incremental growth is concentrated in the construction of new multi-functional light poles, where PLCs have opportunities in the energy-saving retrofitting of existing roads. In Southeast Asia, the early-stage market is testing the cost competitiveness of modules. In this context, the S130N-ISI isn't a "universal street light module," but rather a PLC hardware option that adapts to the needs of single-lamp controllers in terms of protocol, size, and interface. Its value lies not in the absolute values of its specifications, but in its compatibility with the specific project's wiring conditions. For the engineering team, this means resolving the "do we need to break the road?" question at the project initiation meeting, rather than discovering during the commissioning phase that line noise is causing communication success rates far below expectations. Testing the line first, then selecting the module—reversing this order might save you a quote, but cost you the entire road's commissioning time.

I. The Real-World Coordinates of the Wi-Fi 8 Standard Progress Just two days ago, Qualcomm's Dragonwing platform released a signal at Network X 2026 – the Wi-Fi 8 gateway solution was launched. To understand this, we need to clarify the current standard stage of Wi-Fi 8. At the IEEE plenary meeting in Montreal in July 2026, the 802.11bn task force voted to submit Draft 2.0 to the working group for a vote, thus finalizing the core features of Wi-Fi 8. According to the timeline disclosed by ABI Research, Draft 3.0 voting is scheduled for January 2027, Draft 4.0/initial standards association voting is targeted for May 2027, final working group approval is set for March 2028, IEEE standards committee approval is expected for May 2028, and the Wi-Fi Alliance certification program is expected to launch in January 2028. The key implication of this timeline is that Wi-Fi 8 will still be in the draft standard stage in 2026, with certified products and large-scale commercialization not truly starting until 2028. However, chip platform and module solution providers have already significantly accelerated their product development pace. Broadcom was the first to release Wi-Fi 8 chipsets in October 2025, followed by MediaTek and Qualcomm. By September 2026, the Wi-Fi Alliance had already held its first Wi-Fi 8 pre-certification interoperability Plugfest in Beijing, Taipei, and California. While the standard has not yet been finalized, the industry's engineering preparations are already in full swing. II. The Differentiated Deployment Logic of Qualcomm's Dragonwing Platform Qualcomm's Dragonwing product portfolio, showcased at Network X 2026, presents a clear market segmentation strategy. designed for mainstream fiber broadband gateways . According to Qualcomm's official product briefing, the F8 integrates Wi-Fi 8 connectivity and native PON architecture support, targeting Home Gateway Units (HGUs) and Single Units (SFUs). Key specifications include: peak wireless capacity of 23Gbps, support for up to 750 concurrent clients, up to three-band operation and a 14-antenna configuration , flexible RF configuration allowing for a 5x5 mode or splitting into dual-band simultaneous 2x2+3x3 modes, and native support for GPON, XG-PON, and XGS-PON standards. The platform supports open-source middleware such as prplOS, OpenWRT, RDK, and OpenSync, and is equipped with a dedicated scanning radio frequency for automatic channel selection and radar detection. designed for high-end enterprise access points (APs) and flagship home routers . Its specifications are significantly improved: peak wireless capacity of 33Gbps, support for up to 1500 concurrent clients, up to five frequency bands and a 20-antenna configuration , integrated five-core CPU and Hexagon NPU, and support for edge AI inference. Developed in collaboration with GFiber, this platform, a Wi-Fi 8 Premium Gateway, aims to support symmetric 20Gig broadband services, redefining the gateway from a "connected device" to a "smart service platform." Meig Smart chose to launch its Wi-Fi 8 gateway solution on the N8 platform, officially announcing it at Network X 2026 on October 14th. The industry significance of this launch lies in the fact that the entire engineering transformation chain of a Wi-Fi 8 gateway, from chip platform to deliverable solution, has been fully demonstrated for the first time. For downstream customers, the Wi-Fi 8 gateway is no longer a distant concept "waiting for the standard to be finalized," but rather an evaluable chip base and a referenceable solution design. III. Generational Positioning of Qogrisys Gateway Module Product Line Although manufacturers are currently rushing to implement their strategies in advance, WiFi 7 and WiFi 6 remain the mainstays of shipments. They are more mature than WiFi 8 and are still the preferred choice. During this window of opportunity before the Wi-Fi 8 standard is finalized, gateway module solution providers need to strike a balance between technological foresight and market deliverability in their product strategies. Qogrisys's two main gateway module products are precisely designed to meet different levels of demand during this transition period. Wi-Fi 7 Platform: O2072PM and O2072PB The O2072PM is based on the Qualcomm FastConnect C7700 (QCC2072) chip, uses a standard M.2 Key E interface (22×30mm), and supports Wi-Fi 7 (802.11be) and Bluetooth 6.0. Its core capabilities include: tri-band 2.4/5/6GHz concurrent operation; the 6GHz band supports 320MHz channel bandwidth and 4096QAM modulation, with a peak rate of 5.8Gbps ; and it supports 320MHz Enhanced Multi-Link Single Radio (eMLSR) , enabling millisecond-level switching when the link is interfered with. This module has completed driver adaptation for Intel x86 platforms with kernels 5.15.24+, 6.1.99, and 6.12.0. The O2072PB is based on the same QCC2072 chip and uses a 15×13mm surface mount package, targeting space-constrained onboard integration scenarios. Wi-Fi 6E Platform: O2066PM and O2066PB The O2066PM is based on the Qualcomm QCA2066 chip and uses a standard M.2 2230 Key E interface (22×30×2.7mm), supporting Wi-Fi 6E (802.11ax) and Bluetooth 5.2. Key specifications include: tri-band 2.4/5/6GHz support, dual-band simultaneous (DBS) operation, and a maximum speed of 2975.6Mbps ; support for 2×2 MU-MIMO, 160MHz channel bandwidth, and dynamic frequency selection (DFS radar detection). The Bluetooth interface supports both UART/PCM and USB configurations. The module operates in a temperature range of -30℃ to +85℃ , exhibiting industrial-grade stability. In VR products, it has achieved a measured throughput of 2.1Gbit/s and has been designed into customer VR products, which were showcased at CES 2023. The O2066PB is based on the same QCA2066 chip, and its core capabilities are identical to the O2066PM; the difference lies in its package form. It uses a small SMT LGA package, measuring 13×15×2.3mm , targeting space-constrained onboard integration scenarios. Wi-Fi uses a PCIe interface, and Bluetooth uses a UART/PCM interface. Its operating temperature range is -30℃ to +70℃ , making it suitable for consumer-grade terminal devices. the O2072 series is logically consistent with the "high reliability connection" emphasized by Wi-Fi 8—Wi-Fi 7's MLO provides an engineering implementation of link redundancy, while Wi-Fi 8's Multi-AP Coordination (MAPC) extends the coordination scope from a single device to a multi-node network. The O2066 series represents another path: during the transition period when the cost of Wi-Fi 7 modules has not yet dropped to an acceptable level for low-end and mid-range gateways, Wi-Fi 6E's 6GHz band capability provides cost-sensitive customers with a "partial generational upgrade" option . IV. Generational Transition Logic Between Chip Platforms and Module Products From Wi-Fi 6E to Wi-Fi 7 and then to Wi-Fi 8, the technological evolution path of gateway modules shows a clear continuity. The core improvement of Wi-Fi 8 over Wi-Fi 7 lies not in peak speed . According to industry technical analysis, Wi-Fi 8 is compatible with Wi-Fi 7's 2.4/5/6GHz tri-band, 320MHz channel, and 4096QAM. Existing Wi-Fi 7 RF architectures can support these core features through firmware upgrades . Wi-Fi 8 offers approximately double the actual throughput and reduces P99 latency to about one-sixth of Wi-Fi 7. Its core value lies in reliability, coverage, and concurrency efficiency in high-density/long-distance scenarios , achieved through multi-AP collaboration, dynamic resource scheduling, and enhanced link design. Wi-Fi 7 addressed "speed," while Wi-Fi 8 addresses "stability." The eMLSR multi-link operation capability and tri-band concurrent architecture already possessed by the O2072 series from Qogrisys are engineering implementations on the Wi-Fi 7 platform. As the Wi-Fi 8 MAPC protocol stack and enhanced long-range response (ELR) features mature, module products based on the Wi-Fi 7 RF architecture have the engineering foundation to migrate to Wi-Fi 8 features at the hardware level . The core challenges lie in upgrading the software protocol stack and implementing multi-AP coordination functions. The O2066 series represents another path: during the transition period when the cost of Wi-Fi 7 modules has not yet dropped to an acceptable level for low-to-mid-range gateways, the 6GHz band capability of Wi-Fi 6E provides cost-sensitive customers with a "partial generational upgrade" option . V. Conclusion Qualcomm's Dragonwing platform was publicly launched as a Wi-Fi 8 gateway solution during Network X 2026, marking the transition of Wi-Fi 8 from the standard draft and chip prototype stages to the gateway product engineering stage . Meig Smart's solution release validates the transformation path from chip platform to deliverable gateway, and also indicates that the competitive pace among module solution providers has shifted from "following after the standard is frozen" to "parallel development during the standard draft stage." For gateway module solution providers, the core task at this stage is not to "get a head start" on the Wi-Fi 8 platform, but to accumulate transferable engineering capabilities on the Wi-Fi 7 and Wi-Fi 6E platforms. The experience of O2072PM / O2072P B in eMLSR multi-link operation, the accumulated RF engineering expertise in tri-band concurrent architecture, and the cost optimization path of O2066PM / O2066P B in the 6GHz band together constitute the product positioning for the transition to the Wi-Fi 8 era. From a longer-term perspective, Wi-Fi 8 redefines the gateway from a "wireless coverage device" to an "access node in a multi-AP coordinated network." This role change requires module solution providers to extend their capabilities beyond simple RF engineering and driver adaptation to system-level capabilities such as network topology planning, multi-node collaborative scheduling, and deployment scenario adaptation. During the standard window of 2026-2027, module solution providers' product strategies need to find a balance between "technological foresight" and "current deliverability"—Wi -Fi 7 modules serve current high-end gateway needs, Wi-Fi 6E modules cover cost-sensitive scenarios, and Wi-Fi 8 productization preparation needs to be quickly integrated as soon as the chip platform becomes available.

I. A lógica de aceitação mudou: de "se está instalado ou não" para "só conta se for testado". Projetos fotovoltaicos em telhados em Shenzhen estão passando por uma atualização substancial nos padrões de aceitação. O padrão local de construção de engenharia de Shenzhen, SJG 220-2026, foi implementado, que estabelece indicadores quantitativos precisos para desligamento rápido: a ação de desligamento deve ser concluída em no máximo 30 segundos, a tensão a 1 metro do arranjo fotovoltaico deve cair para menos de 80V e a tensão fora de 1 metro deve cair para menos de 30V. Isso não é algo que possa ser simplesmente descartado como "instalação de desligamento rápido". O pessoal de aceitação no local primeiro localizará todos os pontos de gatilho de desligamento, confirmando a consistência da lógica nas saídas de incêndio, perto do inversor e no terminal de controle remoto; em seguida, verificará a correspondência entre os dispositivos de desligamento e os componentes; finalmente, registrará o tempo e a tensão nos pontos de medição especificados nos desenhos, confirmando que o limite do arranjo, tanto dentro quanto fora da versão adotada pelo projeto, atende aos requisitos.Simplesmente afirmar "RSD está escrito na lista de materiais" não é mais suficiente para aceitação; o desempenho do controle de tensão em nível de sistema é o critério final. O padrão de grupo de Xangai T/ESETA 000007—2026 refinou ainda mais os requisitos: o desligamento deve ser concluído em 30 segundos após o acionamento, e a tensão externa do limite alcançável deve ser ≤30V, a tensão interna deve ser ≤120V e a potência de saída deve ser ≤1W. Ele também afirma claramente que "o desligamento é dividido em nível de componente e nível de string, e soluções de nível de componente devem ter prioridade em locais densamente povoados". O mercado norte-americano tem barreiras de entrada mais rigorosas. O NEC 690.12 exige que os condutores controlados fora do limite do arranjo caiam abaixo de 30V em 30 segundos, e que a proteção contra choque elétrico para bombeiros dentro do limite seja alcançada por meio de um dispositivo PVHCS listado ou método de limitação de tensão.Ao selecionar uma solução PLC, o método de modulação e a imunidade a ruído do chip determinam diretamente o número de componentes que o sistema pode suportar. II. Lógica hierárquica do SunSpec: Conformidade do chip ≠ Certificação do módulo ≠ Aprovação completa do sistema Esta é uma questão crítica que é mais facilmente negligenciada por fabricantes de chaves e compradores de módulos. A especificação "Sinal de Comunicação para Desligamento Rápido" da SunSpec Alliance define o protocolo de comunicação entre o transmissor e o receptor: o transmissor envia continuamente um sinal em um estado "operacional", e o receptor aciona o desligamento ao detectar uma perda de sinal. A SunSpec Alliance afirma explicitamente:"Apenas a marca 'SunSpec Certified' comprova a implementação completa e bem-sucedida da especificação de funcionalidade do sinal de comunicação SunSpec Rapid Shutdown. Alegações de 'conformidade SunSpec' ou 'compatibilidade SunSpec' por fabricantes ou terceiros não são equivalentes a um certificado emitido pela SunSpec." Isso significa queo suporte de chip para protocolos, a aprovação do módulo em testes de conformidade e a certificação completa do dispositivo são três níveis de verificação independentes. A compatibilidade de protocolo em nível de módulo é apenas o primeiro obstáculo; certificações de segurança como UL 1741 e CSA C22.2 em nível de unidade completa são os passaportes para entrada no mercado.Essa compreensão é crucial para as decisões de seleção dos fabricantes de disjuntores.   III. Três Dimensões de Engenharia para Seleção de Módulos: Tamanho, Consumo de Energia e Capacidade de Rede Para fabricantes de disjuntores, os recursos "suporte PLC" e "driver de linha integrado" nas especificações do chip são apenas o ponto de partida.O que realmente determina se uma solução pode ser produzida em massa e implementada é a adaptabilidade de engenharia em nível de módulo. A primeira dimensão é o tamanho.O disjuntor é instalado no painel traseiro de cada módulo fotovoltaico, onde o espaço é extremamente limitado, e compartilha essa área limitada com caixas de junção e cabos. O tamanho do pacote do módulo determina diretamente o espaço de design e o método de instalação da carcaça do disjuntor. Módulos PLC que usam o chipset Hisilicon PS0211 geralmente usam um pacote de header de pino de 28,12 × 18,00 mm ou um pacote de finger de ouro de 20,0 × 14,2 mm, enquanto alguns fabricantes de módulos lançaram uma versão ainda mais miniaturizada de 20,0 × 11,0 mm. A segunda dimensão é o consumo de energia.O dispositivo de desligamento é alimentado pelo próprio painel fotovoltaico e não possui entrada de energia independente. O consumo de energia estática da solução HiSilicon PS0211 é ≤0,15W (no estado conectado à rede, sem envio de pacotes), e o consumo de energia operacional dinâmico é ≤0,5W. Durante períodos de luz solar insuficiente, quando os módulos estão sombreados ou à noite, o módulo deve depender de um consumo de energia de espera extremamente baixo para manter sua capacidade de monitoramento, aguardando o sinal "operação permitida" enviado pelo transmissor do inversor. A terceira dimensão é a capacidade de rede.Os sinais PLC são transmitidos por linhas de energia DC, e o dispositivo de desligamento, atuando como um nó STA, precisa estabelecer um link de comunicação confiável com o CCO na extremidade do inversor. A solução HiSilicon PS0211 suporta rede rápida em 10 segundos em um cenário típico de rede de 200 nós e 2 níveis, suportando roteamento dinâmico e endereçamento multipath, e métodos de propagação de comandos unicast, multicast e broadcast.Para o requisito de acesso unificado para múltiplos componentes e dispositivos em sistemas fotovoltaicos distribuídos, a escala de rede e o desempenho de tempo dos módulos afetam diretamente a eficiência de comissionamento do sistema. IV. Alinhamento de Cena de Dois Módulos PLC deQogrisysy Na seleção de módulos PLC de desligamento fotovoltaico, a Qogrisysy oferece dois produtos baseados em diferentes soluções de chip, cada um correspondendo a diferentes focos de engenharia. o S130N-ISI (solução Linktronics VC6330)é seu tamanho ultrapequeno. Este módulo usa embalagem LCC, com um tamanho de PCB controlado em 12,6 × 20,6 × 2,5 mm. Ele opera em temperaturas que variam de -20°C a 80°C e em temperaturas de armazenamento de -40°C a 125°C, suportando largura de banda SGCC 0~12MHz e o protocolo de comunicação IEEE 1901.1.Para projetos de chaveamento com espaço extremamente limitado, o tamanho físico do módulo é frequentemente o primeiro obstáculo de triagem. Para o projeto de invólucros de unidades de desligamento rápido (RSU) onde o espaço é severamente restrito, as dimensões físicas do módulo frequentemente servem como o principal critério de triagem. Para fabricantes de RSU, a compatibilidade de engenharia em nível de módulo é mais crítica do que parâmetros específicos de chip: a unidade é montada na parte traseira do módulo PV — uma área com espaço extremamente limitado — e é alimentada pelo próprio painel PV, exigindo que ele monitore continuamente os sinais PLC enquanto opera com um consumo de energia em nível de microwatt. Métricas de engenharia em três dimensões — dimensões do módulo, características de consumo de energia e confiabilidade em uma ampla faixa de temperatura — determinam diretamente se a RSU completa pode operar de forma estável em ambientes reais de telhado. V. Conclusões Chave Primeiro, PLCs são a solução técnica ideal para desligamento rápido em nível de componente.A especificação SunSpec usa explicitamente PLCs como portadores de sinal de comunicação, multiplexando linhas de energia DC para transmitir sinais de controle, evitando assim os riscos de custo e confiabilidade de instalar linhas de comunicação separadas para cada componente. Segundo, os critérios de aceitação estão mudando de "funcionalidade" para "eficácia mensurável".As especificações de 30 segundos/80V/30V no SJG 220-2026 e os requisitos quantitativos do padrão de grupo de Xangai significam que o projeto de uma solução de desligamento rápido deve resistir a testes no local. Terceiro, a consideração principal para a seleção de módulos deve mudar de "parâmetros de chip" para "adaptabilidade de engenharia".Os três indicadores de engenharia — restrições de espaço da unidade de desligamento, restrições de consumo de energia sob condições de autoalimentação e restrições de escala de rede em cenários distribuídos — são a chave para determinar se uma solução pode ser produzida em massa e implementada. Quarto, a conscientização sobre os níveis de certificação é uma capacidade que os fabricantes de disjuntores devem estabelecer.O suporte de chip para o protocolo SunSpec, a certificação do módulo através do SunSpec e a certificação completa da unidade através dos padrões de segurança UL 1741 são três níveis de verificação independentes. O chip Hisilicon PS0211 indica explicitamente suporte para o padrão SunSpec, e o módulo Qogrisysy 3121N-H, baseado neste chip, fornece uma garantia fundamental em nível de protocolo para a certificação completa da unidade dos fabricantes de disjuntores. Quinto, o papel dos fornecedores de módulos está se expandindo de "entrega de dispositivo" para "assistência de certificação".Os fabricantes de chaves precisam de mais do que apenas "módulos utilizáveis"; eles precisam de parceiros técnicos que possam "ajudar a entender a lógica de teste SunSpec, otimizar o projeto de rede do sistema e auxiliar na aprovação da certificação geral do sistema."
